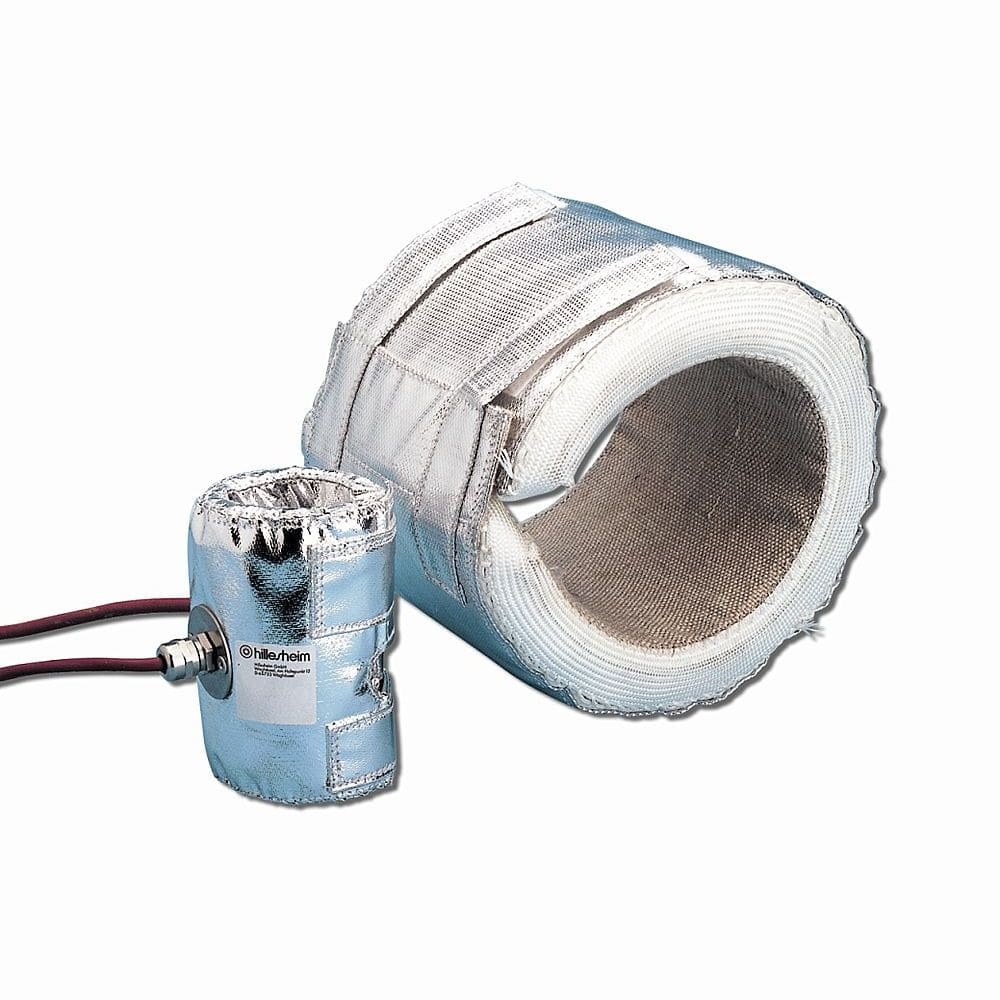

Custom band heater
max. 450 °C | HFH
Hillesheim
Operating temperature up to 250°C with PTFE - heating conductor
up to 450°C with glass- heating conductor
Rated voltage 230 V AC (others on request)
Rated power taylored to respective needs
Excess temperature safeguard Fe-CuNi type J, NiCr-Ni Typ K, PT100 and
integral control system (HTI) are possible
Connecting cable 1.5m
Plug connection see table on page 84
Protection grade IP 40 (basic design) IP 54 (on request))
Protection class 1
material glass filament
dimensions as request
up to 450°C with glass- heating conductor
Rated voltage 230 V AC (others on request)
Rated power taylored to respective needs
Excess temperature safeguard Fe-CuNi type J, NiCr-Ni Typ K, PT100 and
integral control system (HTI) are possible
Connecting cable 1.5m
Plug connection see table on page 84
Protection grade IP 40 (basic design) IP 54 (on request))
Protection class 1
material glass filament
dimensions as request
