Disc brake caliper M500HShydraulicrelease springmodular
Add to favorites
Compare this product
Characteristics
- Type
- disc
- Operation
- hydraulic, release spring
- Other characteristics
- modular
- Torque
Max.: 80,000 ft.lb
Min.: 0 ft.lb
- Braking force
120 kN
Description

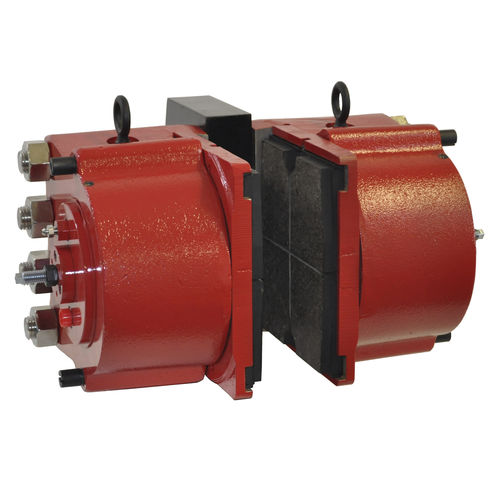

The Hilliard M500HS brake caliper is a hydraulic applied, spring retracted brake caliper for use in heavy duty industrial applications. The brake caliper is suitable for outdoor applications and has been designed for use in many different extreme environments.
The M500HS brake caliper is capable of producing a maximum 27,000 lbf (120 kN) of braking force at 1600 psi (110 bar) and has been designed for use in static or dynamic applications. Static applications can have up to a 50% reduction in braking force.
Applications
Marine/Shipping - Material Handling - Pulp & Paper - Winches
Type: Hydraulic Applied / Spring Released
