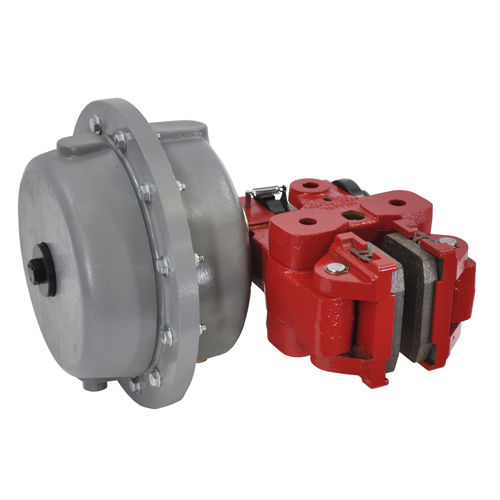

Disc brake A300-T300 AS series
caliper dischydraulic releaserelease spring

disc brake
disc brake
Add to favorites
Compare this product


Characteristics

Type
disc, caliper disc
Operation
release spring, hydraulic release, with pneumatic release
Torque

Min.: 0 ft.lb

Max.: 6,000 ft.lb

Braking force

14,234 N

Description

The A300 is an arm style caliper brake designed to accept a large selection of Hilliard thrusters. These thrusters include spring applied hydraulic released, spring applied pneumatic released, hydraulic applied spring released, and pneumatic applied spring released. The A300 requires a minimum disc diameter of 12" and is off ered in 4 sizes to accommodate a ½", 1", 1-3/16", and 1-1/2" thick disc. The design of the caliper allows the user to quickly convert between right and left handed designs eliminating the need for multiple part numbers. The AS thruster is a direct applied thruster that is pneumatically applied spring released. The Pneumatic applied thrusters are off ered in multiple sizes to meet the needs of our customers. The T300 thruster produces a maximum braking force of 3200 pounds at the maximum operating pressure of 66 psi. Applications Pulp & Paper Type: Pneumatic Applied / Spring Released
