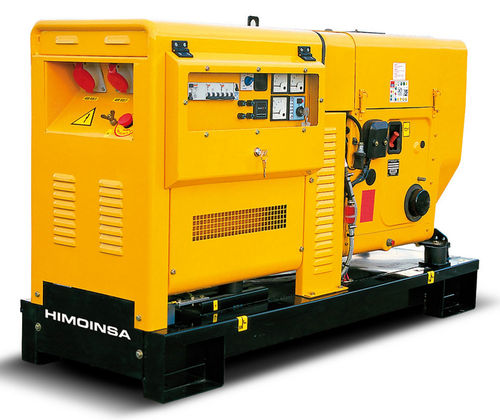

Diesel generator set / three-phase / 50 Hz / air-cooled
HZA1-30C T5 HIMOINSA

Characteristics

  • Motor type:

    diesel

  • Phase:

    three-phase

  • Frequency:

    50 Hz

  • Cooling system:

    air-cooled

  • Options and accessories:

    with cover, soundproofed

  • Rotational speed:

    Min.: 0 rpm (0 rad.min-1)

    Max.: 1500 rpm (9424.78 rad.min-1)

  • Power kVA:

    Min.: 30 kVA (40.23 hp)

    Max.: 33 kVA (44.25 hp)

Description

The Hatx 4L 41C is a 27kW prp unit that uses a 30kW output on standby. It uses a diesel engine with four-stroke cycle and a direct injection setup. It has a natural aspiration setup with a 4-L arrangement. It also uses an air-cooling system and can use 8.13 liters of fuel per hour.

The lube oil consumption rate is 0.2% of fuel use when at a full load. 15 liters of oil can be added at a time. This also has a 12V electrical system, a mechanical governor, a dry air cleaner and guards around all moving and heated parts.
