Data connector FH43 Series
FPCFPC/FFCFFC

data connector
data connector
data connector
data connector
Add to favorites
Compare this product


Characteristics

Type
data
Format
FPC, FPC/FFC, FFC, ZIF, SMT
Shape
parallel
Electrical characteristics
high-speed
Product applications
profile
Other characteristics
halogen-free
Primary current

0.2 A

Voltage

30 V

Pitch

0.4 mm, 0.5 mm
(0.016 in, 0.02 in)

Operating temperature

Max.: 85 °C
(185 °F)

Min.: -55 °C
(-67 °F)

Description

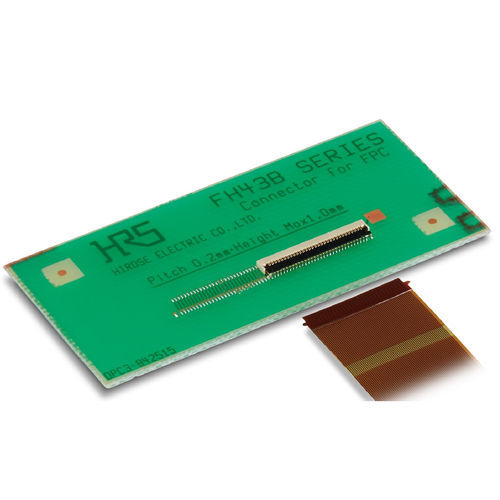

0.2 mm Pitch, 0.9 mm Height FPC Connectors 1. 0.2 mm pitch low profile bottom contact FPC connector 2. Easy PCB mounting 3. Supports high-speed transmissions 4. Molded structure aids PCB layout 5. Rotating one-touch ZIF mechanism 6. Easy FPC insertion 7. Insertion check window 8. Accepts standard 0.2 mm thick FPC 9. Halogen-free available (FH43BW Series) *Defined in accordance with IEC61249-2-21 10.Available for 500 reel packaging (For trial production)
