Data connector W.FL SeriescoaxialSMTcircular
Add to favorites
Compare this product
Characteristics
- Type
- data
- Format
- coaxial, SMT
- Shape
- circular
- Electrical characteristics
- insulated, frequency, HF
- Product applications
- plug, board
- Domain
- automatic
- Other characteristics
- small
- Impedance
50 Ohm
- Operating temperature
Max.: 90 °C
(194 °F)Min.: -40 °C
(-40 °F)
Description

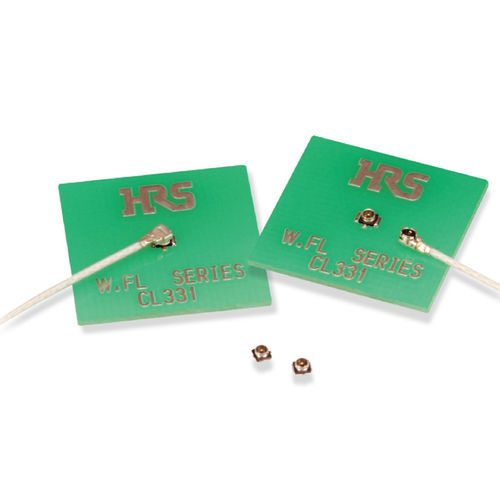

Ultra Small Surface Mount Coaxial Connectors 1.4mm or 1.65mm Mated Height
1. Nominal mated height of 1.4 mm or 1.65mm (Max. 1.55 or 1.85mm)
2. Small board footprint
3. Extremely light weight
4. Frequency range up to 6 GHz
5. Automatic board placement
6. Plugs are terminated with ultra-fine coaxial (fluorinated resin insulated) cable
7. Simple connector mating / unmating
8. Halogen-free*(Receptacle, Plug(HF type))
*As defined by IEC61249-2-21
