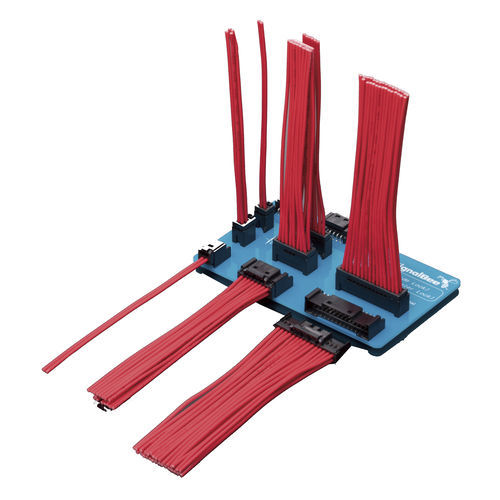

Data connector DF51K Series
wire-to-boardSMTright-angle

data connector
data connector
Add to favorites
Compare this product


Characteristics

Type
data
Format
SMT, wire-to-board
Shape
straight, right-angle, flat
Connection type
socket, crimp, through-hole, locking
Electrical characteristics
AC/DC, polarized
Material
gold, tin
Product applications
for medical devices, for machinery, for robots, for measuring devices
Domain
for industrial applications, for medical applications, for automation applications, for robotic applications
Other characteristics
compact, high-performance, rugged, double-row
Voltage

250 V

Pitch

2 mm
(0.079 in)

Operating temperature

Max.: 105 °C
(221 °F)

Min.: -55 °C
(-67 °F)

Description

2mm Pitch, Positive lock, Wire-to-Board Connector (UL, C-UL Standard Certified) 1. Positive lock provides clear tactile click and secures reliable connection 2. Wide variation 3. Easy lock release due to center lock design 4. Prevents incorrect mating 5. Suitable for potting 6. Uses the same crimp tools as DF11 Series 7. UL, C-UL certified ※Side-locking design also available(DF51 Series)
