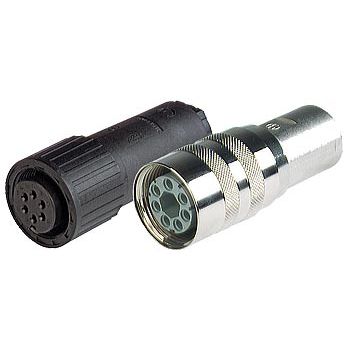

RF connector CM seriesDINcircularbayonet
Add to favorites
Compare this product
Characteristics
- Type
- RF
- Format
- DIN
- Shape
- circular
- Connection type
- bayonet, plug-in
- Material
- plastic
- Domain
- military, outdoor
- Protection class
- IP67
- Other characteristics
- ultra-rugged, strain relief
- Primary current
4 A, 10 A
- Voltage
50 V
Description
Plug-in connectors compatible with MIL-C 5015 or VG 95342, these 4 to 17-pin connectors are ideal for use in the toughest environments. The housing is made of impact-proof, fiberglass-reinforced plastic, with threaded coupling for continuous, problem-free connection. The integrated strain relief also ensures easy handling and quick assembly.
Touch-protected connector system for increased personal safety (DIN EN 61984)
High flexibility through a large number of versions for a wide range of applications
Robust housing and high-quality contact surfaces ensure a long life and maximum productivity
Extremely robust plastic housing for outdoor applications
5- to 17-pin with and without PE
Proven system based on military specifications
Compatible with metal connectors complying with MIL-C-5015 or VG 95342
