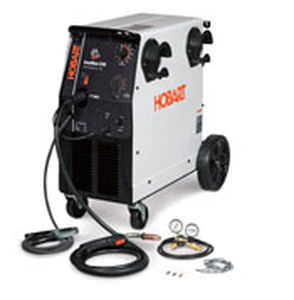

Arc welder IronMan™ 230
single-phasemobilewith wire feeder

arc welder
arc welder
Add to favorites
Compare this product


Characteristics

Technique
arc
Power supply
single-phase
Other characteristics
mobile, with wire feeder, inverter
Intensity

Min.: 30 A

Max.: 250 A

Description

For those who occasionally need and/or desire to weld, this machine outperforms the competition on arc quality, voltage control, and value. Welds up to 1/2", operates on 230V input voltage and up to 250A output power. WHAT'S INCLUDED 15 ft. 200-amp MIG Welding gun Regulator/flow gauge 5 ft. gas hose Primary input cable with plug Dual-groove drive roll - .030/.035 in. 10 ft. work cable with clamp Dual side-mounted cable hangers .030 and .035 contact tips Built-in running gear/cylinder rack Weld, set-up and parts information chart Sloped front panel Makes controls easy to see and access Arc Performance Excellent short arc performance with easy to control weld puddle. 175 amps @ 60% duty cycle, and wide amperage range High machine-output duty cycle, increasing productivity with longer welding periods. Versatile for MIG and flux-cored, gas or gasless welding applications. Can weld at higher amps at lower duty cycle. 12-position voltage control Simplified and accurate adjustments. Maximizes amount of control. Allows for smooth arc with high operator appeal. Spool gun ready Easy setup for welding aluminum with no additional interface. Reversible drive rolls: two grooves for two wire sizes on one drive roll 50% less stocking of drive rolls. Standard, one-piece drive roll decreases spare parts and changeover time, reducing overall costs.

VIDEO
