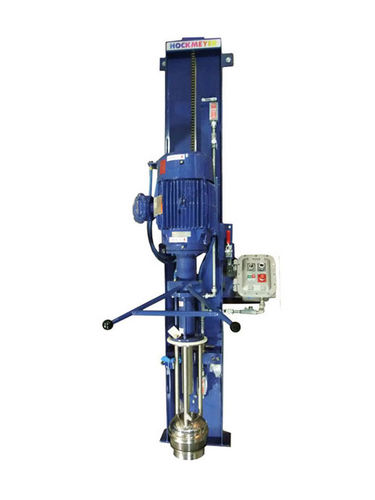

Our Patented Immersion Mill uses circulation milling technology by rapidly pumping the slurry through the media field many more times and more efficiently than any other mill, including basket, horizontal or vertical mills. Remember that any mill that relies upon tank-to-tank or same tank re-circulation is not a continuous process but a batch process.
Machine Features
20 Hp @ 60 Hz Explosion Proof Motor
15 Hp @ 50 Hz Explosion Proof Motor
115" Overall Height, 36" Stroke, 22" Width
Variable Frequency Inverter
Compact wall mounted column uses a counter balance for manually raising and lowering the machine
8 Diameter Basket - 2.5 Liter Media Capacity. Basket Assembly available in .27 mm and .5 mm slots
Basket to be equipped with removable Proprietary Counter Peg Insert
Turbo or Marine Style Propeller
Start and Stop Push Buttons, a Speed Potentiometer, Jog and Emergency Stop
Safety Features include a Height Limit Switch, Shaft Guard and Can Lock
