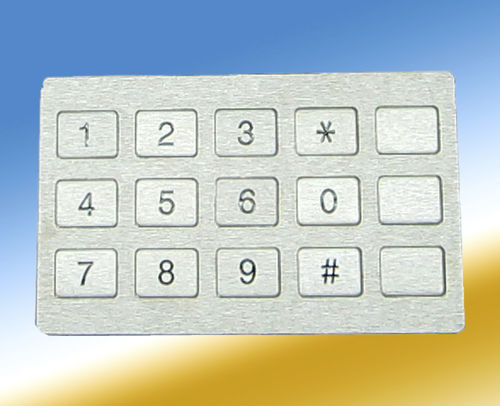

15-key keypad KP8

panel-mountstainless steelrubber

Features Stainless steel fascia and key-tops guard willful destruction, against corrosion, shock, dust, falling raining, splashing, hose-directed water and vandal resistant, operation under hostile environments. Internet friendly key layout, key-tops are sunk laser-etched in legends and characters via using high quality ink for easy readability, long life to prevent lettering rub-off. Or protrusive engraving available. The PINPAD in 4 x 4 matrix with Enter, Cancel, Correction, etc. compliance with ISO standard. 16 bytes keys (16 master keys x 4 working keys), it can be self destructive with back-up battery to achieve this function. The PINPAD can be used as a keypad for numeric entry. The ATM can instruct PINPAD to exit key entry/supervisory mode Application: This encryption PINPAD is mainly targeted for use for unsupervised or semi-supervised positions of varied bank access applications, Bank kiosks, ATM, CDMs etc. ELECTRICAL DATA: Switching Material: Carbon-on-Gold. Power Supply Voltage:+5V DC. Power consumption:Under 1W for operating condition, 200mA for non-operating condition. EMC: EN55022(B). Communication Interface: RS232 Enter PIN: 10 numerical keys and 5 function keys ENVIRONMENTAL ADAPTABILITY: Operating temperature: -20°C to +60°C. Storage temperature:-30 °C to +70°C. Operating RH: 30～90%. Atmospheric pressure: 60～106Kpa. Keypad is watertight while being mounted correctly on ATM
