Propane pressure regulator HP 100for compressed airfor gasheated gas
Add to favorites
Compare this product
Characteristics
- Product
- for inert gases, for compressed air, for gas, for oxygen, for nitrogen, propane, heated gas, for CO2, for sour gas, for hydrogen, for acetylene, for natural gas, for CNG
- Technology
- diaphragm
- Number of stages
- single-stage
- Material
- brass, stainless steel
- Applications
- industrial, for medical applications, for analytical instruments, high-purity, cylinder, for chromatography, welding
- Other characteristics
- compact, with pressure gauge, miniature, high-purity
- Pressure
Max.: 300 bar
(4,351.13 psi)Min.: 0 bar
(0 psi)- Flow
Max.: 25 m³/h
(882.87 ft³/h)Min.: 0 m³/h
(0 ft³/h)- Orifice diameter
0.25 in
- Temperature
Max.: 70 °C
(158 °F)Min.: -20 °C
(-4 °F)
Description

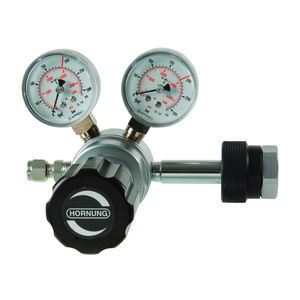

The pressure regulator HP 100 is a single stage cylinder pressure regulator and has been developed especially for the gas supply from single cylinders.
The pressure regulator is fitted as a standard with gas specific connections to DIN 477 or any other common national standard and a relief valve.
Especially for gases with high requirements on purity up to 6.0 and for laboratories and analytics.
A special cleaning system for the HP series guarantees the use for ECD applications
