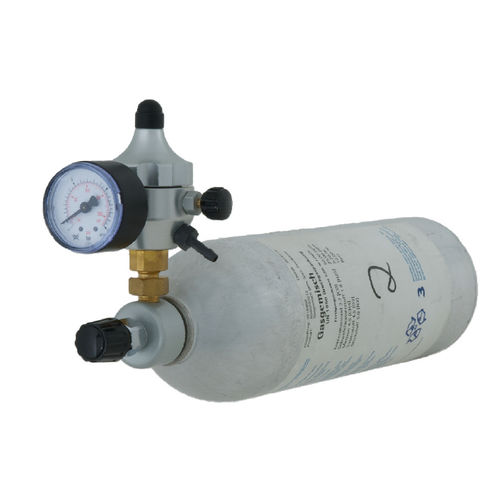

Gas pressure regulator ED 06diaphragmcartridgesingle-stage
Add to favorites
Compare this product
Characteristics
- Product
- for gas
- Technology
- diaphragm, cartridge
- Number of stages
- single-stage
- Material
- aluminum
- Applications
- industrial, for medical applications, for analytical instruments, high-purity, cylinder, for chromatography
- Other characteristics
- compact, with pressure gauge, high-purity
- Pressure
Min.: 0 bar
(0 psi)Max.: 12 bar
(174.05 psi)- Flow
Min.: 0 l/h
(0 us gal/h)Max.: 54 l/h
(14.27 us gal/h)- Orifice diameter
0.125 in
- Temperature
Min.: -20 °C
(-4 °F)Max.: 60 °C
(140 °F)
Description
The cartridge pressure regulator was especially developed for gas extraction from cartridges / bottles.
The initial pressure is fixed at 0,6 bar and the through flow can be exactly positioned with the integrated flow meter.
Low weight is a result of ergonomic design and compact dimensions, optimum handling and a minimum on gas-affected surfaces.
The manometer shows the filling pressure in the cartridge pressure regulator.
Extraction system for cartridges
· Charging with reduced work pressure
