Propane pressure regulator PFR 7for compressed airfor gasheated gas
Add to favorites
Compare this product
Characteristics
- Product
- for gas, for compressed air, for inert gases, for oxygen, heated gas, for nitrogen, propane, for sour gas, for CO2, for hydrogen, for acetylene, for natural gas, for CNG
- Technology
- diaphragm, spring
- Number of stages
- single-stage
- Material
- brass, stainless steel
- Applications
- industrial, for medical applications
- Other characteristics
- with pressure gauge, line, for high flow rates
- Pressure
Min.: 0 bar
(0 psi)Max.: 100 bar
(1,450.38 psi)- Flow
Min.: 0 m³/h
(0 ft³/h)Max.: 100 m³/h
(3,531.47 ft³/h)- Orifice diameter
0.5 in, 0.75 in
- Temperature
Min.: -20 °C
(-4 °F)Max.: 60 °C
(140 °F)
Description

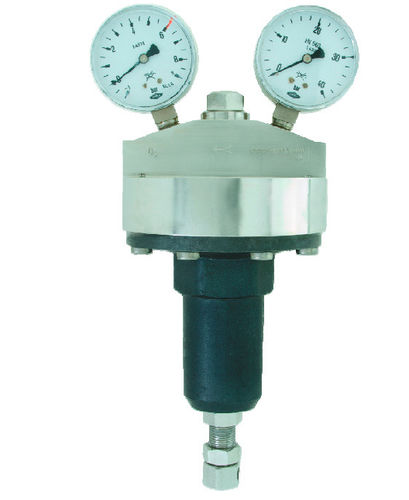

The pressure regulator PFR 7 is for the installation in line systems with large gas flows.
The line pressure regulator PFR 7 is characterised by an accurate regulation and a large throughput.
The spring-loaded pressure regulator works according to the principle of the force equilibrium between the adjusted spring force and the outlet pressure.
It can be equipped optionally with an inlet and an outlet gauge.
The use of stainless steel in connection with elastomere made of viton permits the application of this pressure regulator with aggressive media.
Through the large effective diaphragm surface, at low pressure variant, optimal controllability is guaranteed.
