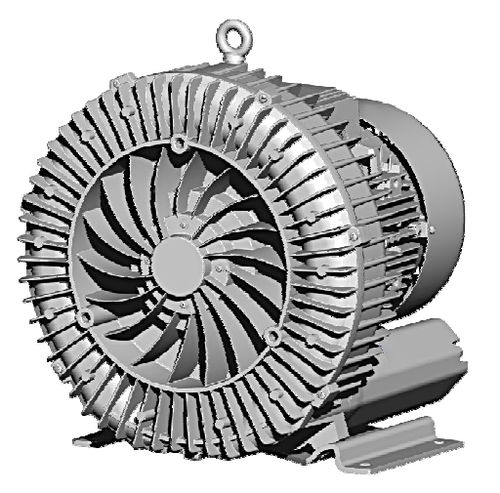

Air blower HPE 6side-channelsingle-stage
Add to favorites
Compare this product
Characteristics
- Type
- air
- Technology
- side-channel
- Number of stages
- single-stage
- Flow
Max.: 376 m³/h
(13,278.31 ft³/h)Min.: 318 m³/h
(11,230.06 ft³/h)- Operating pressure
Max.: 33,000 Pa
(4.786 psi)Min.: 0 Pa
(0 psi)- Nominal power
Max.: 4.6 kW
(6.254 hp)Min.: 1.6 kW
(2.175 hp)
Description
The impeller, with small fins, turns inside the side channel causing that the air is compressed and accelerated, creating small vortexes of air that are drawn by the blades from the intake to the exhaust.
There are no parts in contact between the stator and rotor; this means the blowers do not need lubrication nor routine maintenance.
