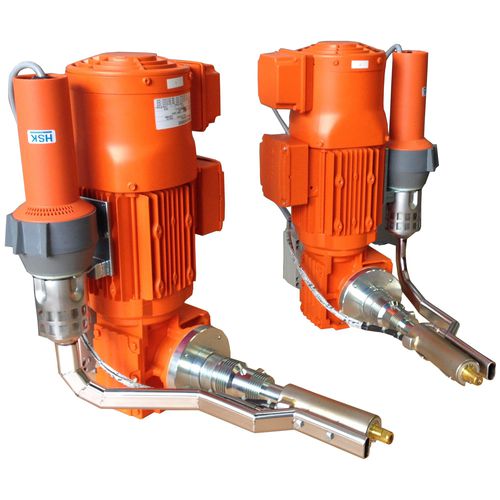

Welding extruder IE60single-screw
Add to favorites
Compare this product
Characteristics
- Applications
- welding
- Number of screws
- single-screw
- Output
Min.: 2.5 kg/h
(5.5116 lb/h)Max.: 7 kg/h
(15.4324 lb/h)
Description
Industrie Extruder HSK-IE60
for working with von polyolefine Granules or rods
output app. 2,5 kg/h – 7kg/h
Product Description
drive with 1,1 KW power
Type R40 F DT80N2
speed 2700 / 241 / 3300 / 294 1/Min.
power 230 / 400 V
frequenz 50 Hz
air supply 230 V for drive
inverter
cylinder K50D/G with connection to drive
cooling elements for feeder
Heating elements up to 1200 W
funnel for Granulat with app. 1,5 kg
Thermocouple Mass and air
Screw with back pressure bearing
control box with temperature controllers
