Butt welding machine EasyWeld110

manualfor plasticscompact

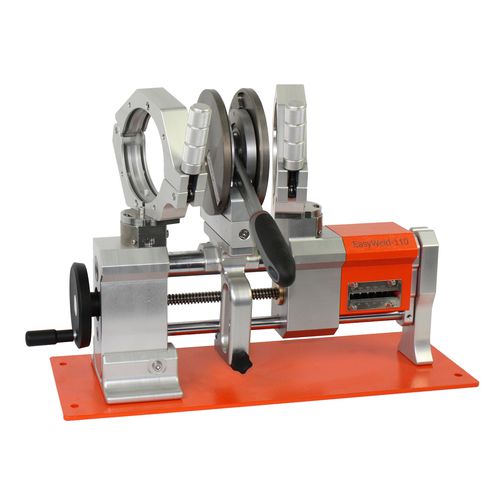

pipe welding machine EasyWeld110 The small and powerful pipe welding tool. For work in plastic welding according to DVS 2208 The EasyWeld110 is a plastic welding machine for heating element butt welding of PE, PP and PVDF pipes and fittings from OD 20 to OD 110 mm. The basic machine has two large aluminium basic clamping tools which are swivelling up to 15° on each side for the fabrication of segmented bends. By screwing in 4 small reduction inserts, a double clamping is obtained at the smaller diameters. For fittings with short legs, a small fitting clamping tool is available. Due to the special construction of the pressure build-up device, the machine can be fixed directly at very short pipe ends on walls and sheets. Due to its light and compact construction as well as due to the horizontal and vertical motion, the machine is ideally suited for use in the pipeline system and for installation work. In the case of stationary use, the machine can be fixed in the vice or at the table support. The light and compact manual planer is operated by means of a ratchet. The electronically controlled heating element in accordance with DVS 2208 (220 V/600 W) has a working diameter of 140 mm, a anti-stick coating and control lamps for system and interval checking. For the safe storage of the planer and the heating element, a heat-protected box is available. The sheet steel carrying case serves for the transport and the protected storage of the complete EasyWeld110.
