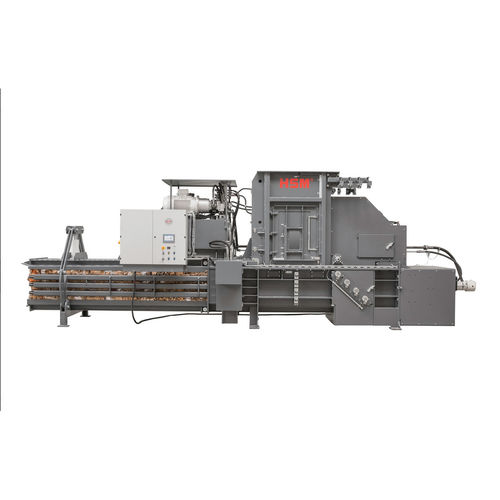

horizontal baling press / channel / for cardboard boxes / for paper
VK 5012 series HSM GmbH + Co. KG



  • Orientation:


  • Loading:


  • Product applications:

    for cardboard boxes, for paper, for waste, for plastics

  • Other characteristics:


  • Compression power:

    500 kN

  • Bale weight:

    Max.: 550 kg (1,213 lb)

    Min.: 300 kg (661 lb)


5-fold strapping for optimised bale result
Particularly suitable for cardboard, paper and foils and also for compressing DSD goods and PET bottles
Also suitable for materials with bulk weights higher 60 kg / m³
Optimised bale dimensions and bale weights for efficient truck loading
Large loading aperture, quick mode of operation
Control of compression cycle via light barriers
High compression and bale weights
Available as an option with frequency-regulated drive – saves 40% of the energy used by standard drives
