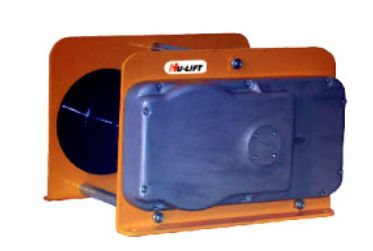

Electric cable winch
250 - 1 100 daN | EWH series
HU-LIFT
▲ Wire rope winches series are designed explicitly for performance, efficiency and safety and offer many advantages and options. Their extremely compact, practical cube design and universal rope lead-offs allow individual applications in almost any position and make them powerful aids for lifting and pulling loads.
▲ Every winch is factory tested with overload.
▲ In accordance with DIN 15020, safety regulation VBGB (winch lift and pull equipment) and the EC machinery directives.
▲ Compact dimensions due to internal brake motor, standard: Euro-voltage 230/400V. 50Hz. 3-phase, protected to IP 54, insulation class F.
▲ Spur gear transmission with helical first gear ensures smooth motion. Lubricated by grease and can, therefore, be used in any position.
▲ Spring pressure disc brake incorporated in the motor holds the load secure even in the event of a power failure.
▲ Plain rope drum standard.
▲ The rope is secured to the drum in a recess so that the rope can be would onto the drum in several layers without damage.
▲ Direct control as standard.
▲ Every winch is factory tested with overload.
▲ In accordance with DIN 15020, safety regulation VBGB (winch lift and pull equipment) and the EC machinery directives.
▲ Compact dimensions due to internal brake motor, standard: Euro-voltage 230/400V. 50Hz. 3-phase, protected to IP 54, insulation class F.
▲ Spur gear transmission with helical first gear ensures smooth motion. Lubricated by grease and can, therefore, be used in any position.
▲ Spring pressure disc brake incorporated in the motor holds the load secure even in the event of a power failure.
▲ Plain rope drum standard.
▲ The rope is secured to the drum in a recess so that the rope can be would onto the drum in several layers without damage.
▲ Direct control as standard.
