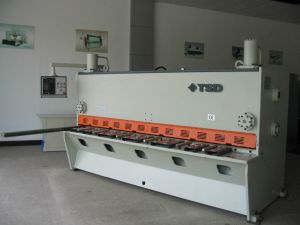

Hydraulic shear HGN(K) Series
for metalguillotine

hydraulic shear
hydraulic shear
hydraulic shear
hydraulic shear
hydraulic shear
Add to favorites
Compare this product


Characteristics

Operation
hydraulic
Application
for metal
Type
guillotine
Working length

2,500 mm, 3,100 mm, 4,000 mm, 5,000 mm
(98.43 in, 122.05 in, 157.48 in, 196.85 in)

Pressing force

220 kN, 245 kN, 275 kN, 580 kN

Description

Introduction HGN (K) series power squaring shear machine adopts an optimized frame designed by UG-software. The wholly welded structure shows good strength and rigidity. Stable integrated hydraulic system contributes to safe and reliable operation. This type of shearing machines allows for blades gap and shearing angle adjustment, which is a key point to get desired products. Characteristics 1.HGN (K) series hydraulic guillotine features in a unique turret structure of three idler rollers guiding the rail. The former pre-pressing lead rail makes the turret be tightly between the upper rail and the lower rail and continually repeat reciprocating action. 2.These power squaring shear machines have the merits of integrated hydraulic system, with high quality hydraulic components and seals made by world-famous companies, so as to minimize hydraulic tubing to the least degree and ensure safe and reliable operation. 3.Hydraulic components and seals are all in the sizes conforming to ISO and DIN standards. 4.When cutting plates of different kinds and thicknesses, blades clearance can be easily adjusted through a blades gap quick adjustment device. In addition, blades gap value is shown on a dial plate. 5.Shear angle adjustment is available so that material distortions could be minimized. 6.Our hydraulic guillotines are equipped with a centralized button station, contributing to easy operation.. 7.This series power squaring shear machine is also characterized with brief appearance and great shape.
