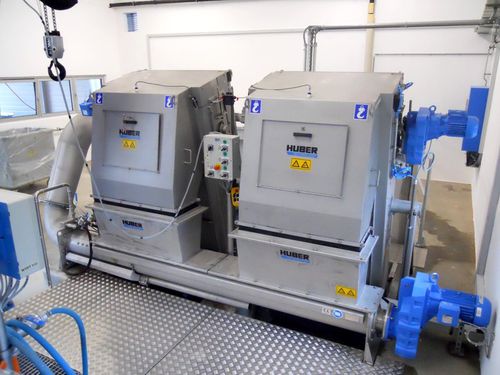

Drainage screener WAP®
washerscrewfor liquids

drainage screener
drainage screener
drainage screener
drainage screener
drainage screener
drainage screener
drainage screener
Add to favorites
Compare this product


Characteristics

Applications
drainage, washer
Type
screw
Material
for liquids
Other characteristics
dewatering, conical

Description

Screenings Wash Press for any application Dewatering perfomance up to 45 % DS Weight reduction up to 75 % Completely made of stainless steel A cost-effective method of screenings washing! The screenings to be treated are discharged directly from a screen or conveyor (e.g. screw conveyor) into the feed trough of the Wash Press. A robust conveying and compacting screw transports the screenings into the wash zone where they are exposed to directed and powerful turbulence created by automatic introduction of wash water (used water). The turbulence achieves perfect separation of organic particles and thus effective screenings washing. The washing intensity and cycles are individually adjustable. The washed screenings are further conveyed in the rising pipe to the press zone where they are pressed and dewatered by the compacting screw to a DS content of 35 - 45 %. The wash water from screenings compaction which is rich in carbon is discharged back into the waste water stream. Automatic cleaning of the wash water collecting tank under the machine is possible. The washed and compacted screenings are finally transported through the conical discharge pipe into a skip.
