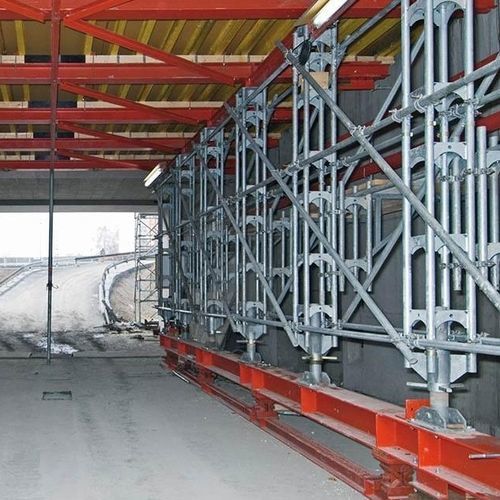

When heavy vertical loads have to be discharged in confined spaces, the load frame prop is the obvious choice. With a footprint of 25 x 25 cm, it can discharge loads up to 210 kN, depending on prop height and horizontal loading. Load-bearing capacity is particularly high when the props are arranged in a series or combined to form towers.
The individual components of the load frame prop are three load frames of differing lengths (100, 150 and 200 cm), a load jack and two head pieces. The load frames and head pieces can be positioned in longitudinal increments of 25 cm. The required prop height can be obtained with load frame head pieces of differing lengths and the adjustment range of the load jacks.
