Skate wheel conveyor flexibleextendable
Add to favorites
Compare this product
Characteristics
- Technology
- skate wheel
- Other characteristics
- flexible, extendable
Description

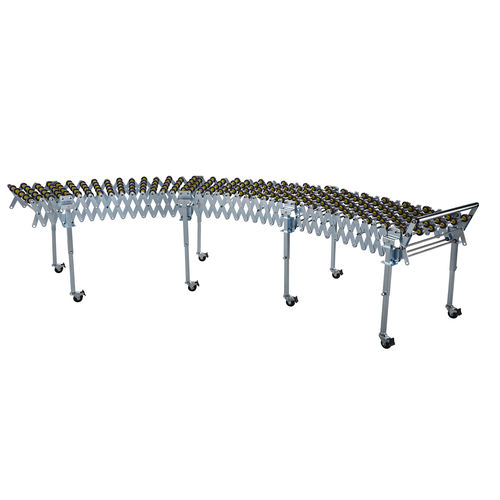

HUMBOLDT-Flexible skate wheel conveyor
with steel or plastic balls
variable in conveying length (extendable)
adjustable in height (700-1,100 mm)
mobile through castors with brakes
flexible wheel conveyors offer a high directional stability for the running of the conveyed material
its high flexibility enables routing as curves or S-curves
frame, slidable lattice grate, galvanized
steel rolls, galvanized, diameter 48 mm
plastic rolls, diameter 48 mm
axial distance, about 32-130 mm, depending on the length being extracted
struts adjustable via telescopic plugs, mobile with castors, 100 mm diameter with brake
flexible conveyors are independent, flexible conveyor lines
