nickel-plated brass cable gland / IP69K / IP68 / EMC-shielded
HSK-M-EMV series HUMMEL

{{requestButtons}}

Characteristics

  • Material:

    nickel-plated brass

  • Protection level:

    IP69K, IP68, EMC-shielded

  • Other characteristics:

    straight

  • Cable diameter:

    Min.: 3 mm

    Max.: 44 mm

  • Operating temperature:

    Min.: -40 °C (-40 °F)

    Max.: 100 °C (212 °F)

  • Thread diameter:

    Min.: 14 mm

    Max.: 68 mm

Description

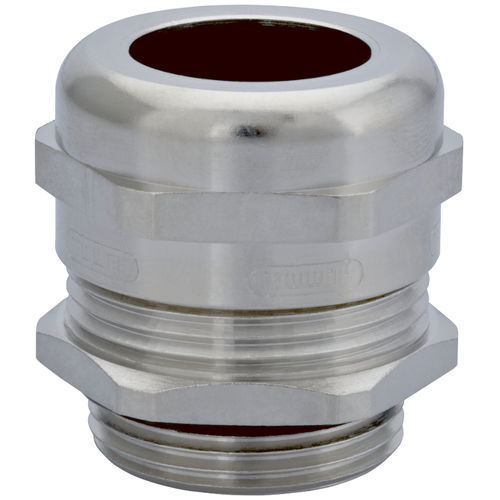

HSK-M-EMV / Metric are standard strain relief fittings made in compliance with EMI specifications, IP 68 protection with 10 bar and IP 69K within the specific clamping range. The device is made of nickel-plated brass material, PA clamping insert, Buna-N seal, Buna-N O-ring and operates at -40 – 100 °C temperature
