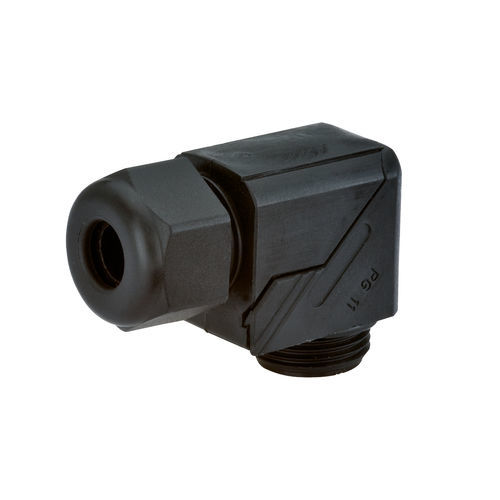

nylon cable gland / IP68 / elbow / threaded
HSK-W series HUMMEL

{{requestButtons}}

Characteristics

  • Material:

    nylon

  • Protection level:

    IP68

  • Other characteristics:

    elbow, threaded

  • Cable diameter:

    Min.: 4 mm

    Max.: 25 mm

  • Operating temperature:

    Min.: -40 °C (-40 °F)

    Max.: 100 °C (212 °F)

  • Thread diameter:

    Min.: 19 mm

    Max.: 42 mm

Description

HSK - W series are snap elbows made out of nickel plated brass or nylon 6/6. They provide the IP 68 level of protection and use Buna-N seals. They can operate at temperatures between -40 degrees Celsius and +100 degrees Celsius. The material used on them is PA and the O-ring is Buna-N. The colors available are RAL 7035 gray and RAL 9005 black.
