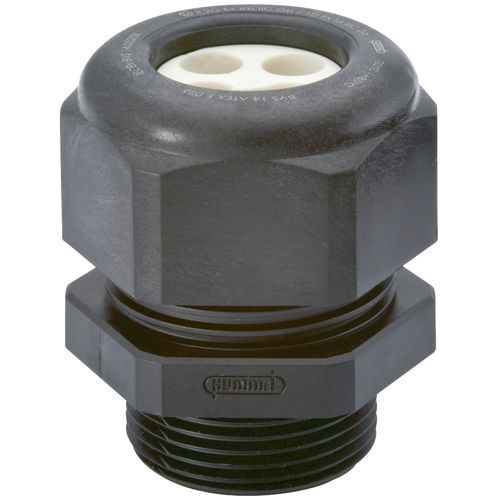

nylon cable gland / explosion-proof / IP68 / multi-passage
HSK-K-MULTI-Ex series HUMMEL

{{requestButtons}}

Characteristics

  • Material:

    nylon

  • Protection level:

    explosion-proof, IP68

  • Other characteristics:

    multi-passage

  • Cable diameter:

    Max.: 18 mm

    Min.: 1.4 mm

  • Operating temperature:

    Max.: 95 °C (203 °F)

    Min.: -20 °C (-4 °F)

  • Thread diameter:

    Max.: 68 mm

    Min.: 19 mm

Description

HSK-K-MULTI-Ex / Metric, with their multi-hole liquid tight strain relief fittings is made of nylon 6/6. Safety ensured through IP68. The seal is made of elastomer. The operating temperature is made of -20 to 95 °C. The material of the product is Polyamide V0 and built according to UL94 standards. Reliability and flexibility ensured through Buna-N O-rings. HSK-K-MULTI-Ex comes in two colors (1)RAL 7035 grey and (2) RAL 9005 deep black. The certification received for the product is II 2G 1D.
