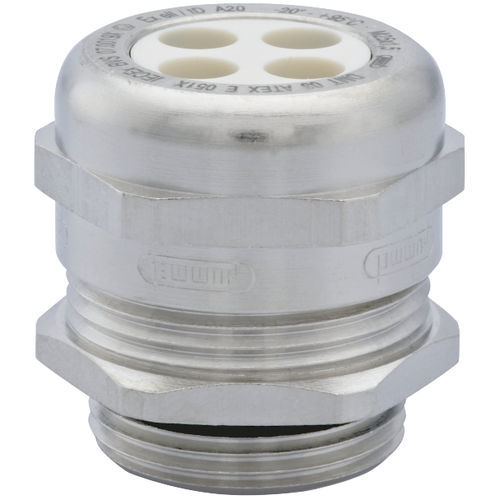

nickel-plated brass cable gland / explosion-proof / IP68 / multi-passage
HSK-M-MULTI-Ex series HUMMEL

{{requestButtons}}

Characteristics

  • Material:

    nickel-plated brass

  • Protection level:

    explosion-proof, IP68

  • Other characteristics:

    multi-passage

  • Cable diameter:

    Min.: 1.4 mm

    Max.: 18 mm

  • Operating temperature:

    Min.: -20 °C (-4 °F)

    Max.: 95 °C (203 °F)

  • Thread diameter:

    Min.: 17 mm

    Max.: 68 mm

Description

The HSK-M-MULTI-Ex series features a liquid tight strain relief fitting built with a nickel-plated brass construction. It is designed with various holes, an elastomer seal, and a PA clamping insert with Ip 68 protection. This fitting functions from -20 °C to 95 °C temperature range and is certified with II 2G 1D.
