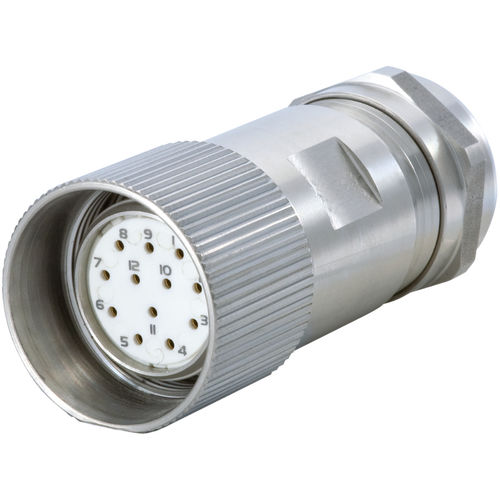

data connector / DIN / circular / push-pull
HUMMEL

Add to MyDirectIndustry favorites
data connector / DIN / circular / push-pull data connector / DIN / circular / push-pull
{{requestButtons}}

Characteristics

  • Type:

    data

  • Format:

    DIN

  • Shape:

    circular

  • Connection type:

    push-pull

  • Size:

    M23

  • Other characteristics:

    IP69K, IP67

Description

The M 23 Signal Push-Pull circular connector of protection class up to IP 67 / IP 69 K per EN 60 629 (connected) with operating temperatures of -40 – 125 °C supporting mating cycles >250, uses aluminum alloy, copper zinc alloy for its housing materials. The housing surface made of nickel plated brass has other options on request. It can contain PBT Fire protection class V-0 and Thermoplastic Polyamide PA 6 (Nylon 6/6) the contact material being Copper-Zinc alloy and contact surface gold plated (0,25?m Au) Nickel. Specifications of Seals / O-Rings are Buna-N standard, Viton (FPM).
