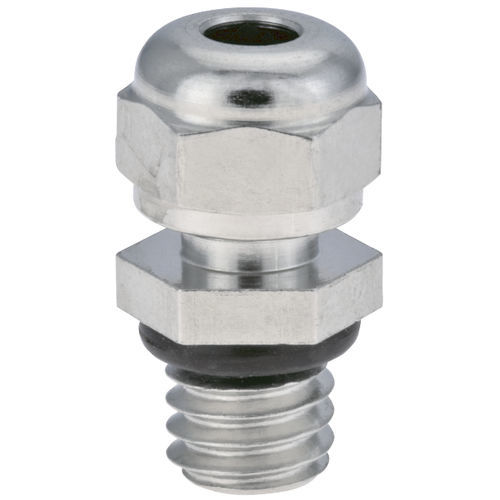

stainless steel cable gland / IP68 / waterproof / miniature
HSK-Mini series HUMMEL

{{requestButtons}}

Characteristics

  • Material:

    stainless steel

  • Protection level:

    IP68, waterproof

  • Other characteristics:

    miniature

  • Cable diameter:

    Min.: 2 mm

    Max.: 6 mm

  • Operating temperature:

    Min.: -20 °C (-4 °F)

    Max.: 120 °C (248 °F)

  • Thread diameter:

    Min.: 8 mm

    Max.: 12 mm

Description

The HSK-mini series offers a wide array of miniature cable glands. They come in three models namely the HSK-mini which is fabricated from stainless steel; the HSK-Mini EMV and the HSK-Mini which is equipped with an elongated thread. These models come in specific thread connections of M8 x 1.25 and M10 x 1.5. Their seal inserts are made out of Thermoplastic elastomer or Fluorocarbon Rubber and are designed to withstand extreme temperatures.
