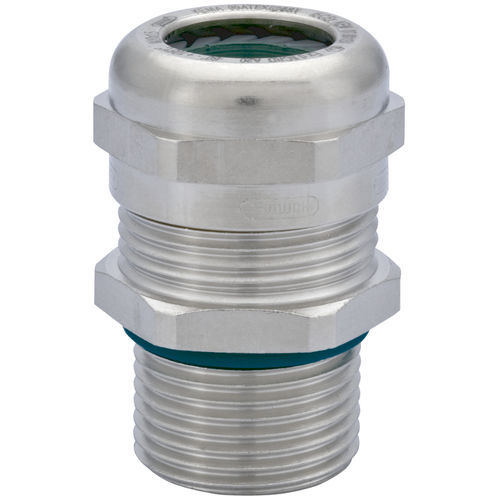

nickel-plated brass cable gland / IP69K / IP68 / explosion-proof
HSK-M-Ex-d series HUMMEL

{{requestButtons}}

Characteristics

  • Material:

    nickel-plated brass

  • Protection level:

    IP69K, IP68, explosion-proof, waterproof

  • Other characteristics:

    threaded, straight

  • Cable diameter:

    Min.: 3 mm

    Max.: 32 mm

  • Operating temperature:

    Min.: -60 °C (-76 °F)

    Max.: 105 °C (221 °F)

  • Thread diameter:

    Min.: 14 mm

    Max.: 50 mm

Description

The Hummel HSK-M-Ex-d series is an explosion-proof liquid tight cable glands constructed in nickel-plated brass framework. These straight through fittings have a PA clamping insert with FPM mechanical seals and can operate in thermal range of -60°C up to 105°C. In addition, these units have II 2G 1D Ex d IIC certification with strict compliance to IP68 10bar / IP69K standards.
