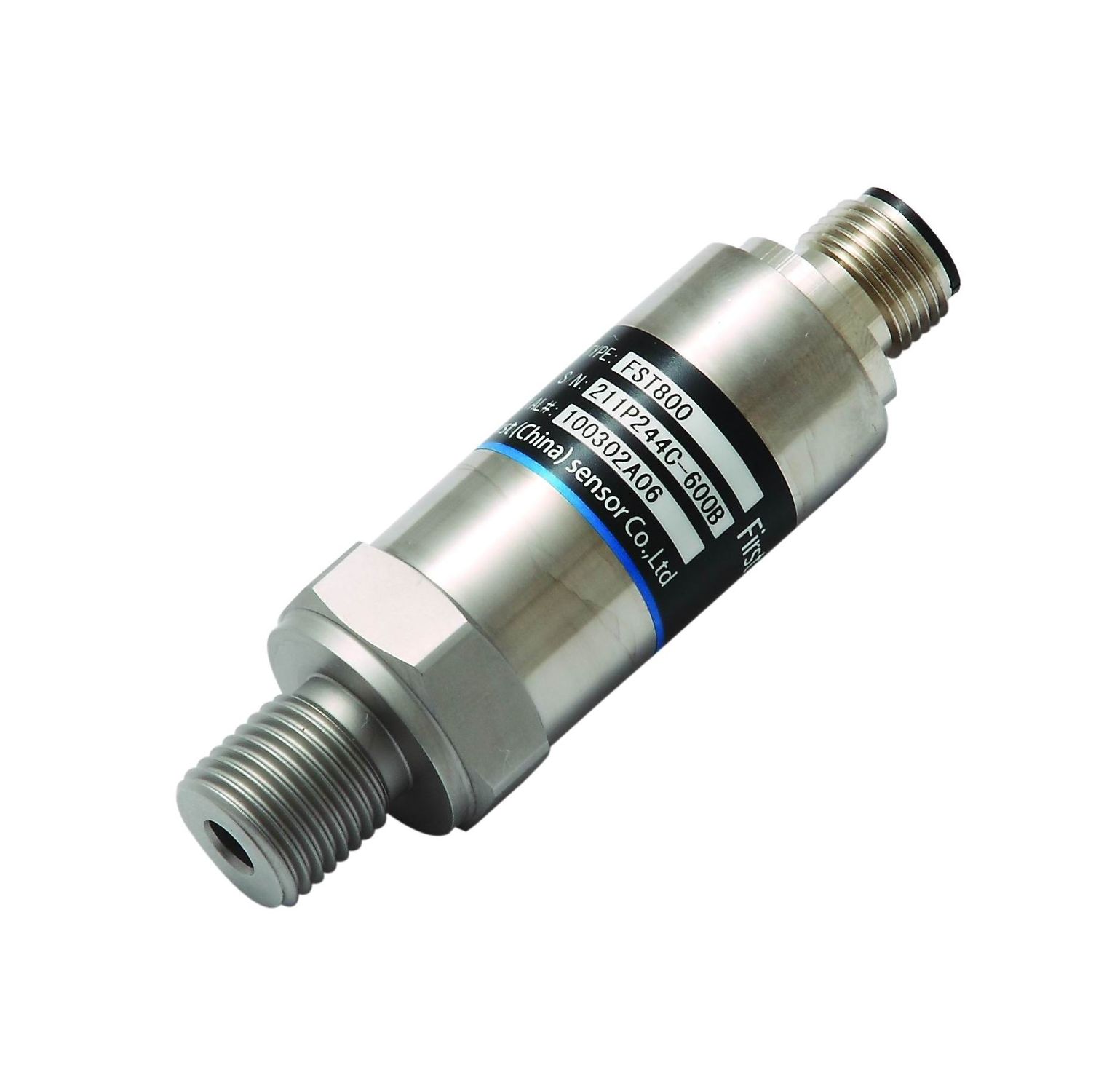

OEM pressure sensor
FST800-201-B
Hunan Firstrate Sensor Co., Ltd.
The FST800-201 universal industrial pressure sensor adopts the MEMS technology and the advanced glass micro-melting technology to avoid influences on the product caused by the temperature, humidity, mechanical fatigue and medium, thus to improve its permanent stability in the industrial environment. Its pressure chamber is made of 17-4PH stainless steel in an integrated way without welding seams or O-rings and free of leakage troubles. The sensor adopts the advanced digital temperature compensation and is featured with the strong interference resistance, wide working temperature scope and permanent stability, etc.
Applicable Scope
Industrial course testing and control
Automatic testing system
Hydraulic and pneumatic systems
Pump station and water treatment system
Industrial machinery manufacture
Technical Indexes:
Pressure Type: meter pressure and sealing pressure;
Pressure Range (bar): 1 1.6 2.5 4 6 10 16 25 40 60 100 160 200 250 300 400 500 600
Output Signal 10mv/v~15mv/v
Signal Line Specification 4 Lines
Power Voltage 5~10VDC (5VDC recommended)
Precision 0.05%, 0.1% , 0.25%, 0.5%
Zero Temperature Drift 0.02% span /℃
Sensitivity Temperature Drift 0.02% span /℃
Permanent Stability (1 Year) 0.1% span
Response Frequency (-3dB) 3.2KHZ
Temperature Compensation -20~85℃
Working Temperature -40~85℃
Storage Temperature -40~125℃
Overload Pressure 300% span
Destructive Pressure 500% span
Mechanical Vibration ±20g
Impact (11ms) 100g
Insulation Resistance 100MΩ
Medium Compatibility Various media compatible with the 316L stainless steel
Protection Grade IP 65 (Cable Output)
Material 17-4PH
