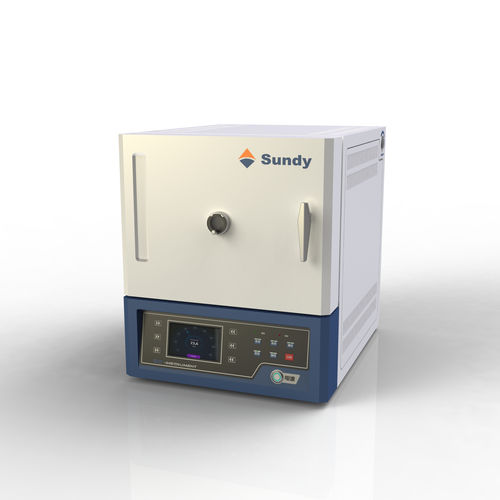

Muffle furnace SDIMF200

dryinganalysislaboratory

Application It can be used to determine ash and volatile content in coal, coke and other solid biomass fuels in power plant, coal industry, metallurgy industry, petrochemical industry, environmental protection, cement industry, paper plant, geological prospecting, research institutes , etc. Specification Temperature Control Range Room temperature～1000℃ Temperature Control Precision ±1℃ Temperature Resolution 1℃ Max. Power 3.5kW Power Requirement 220 V（-10%～10%），50/60 Hz Highlights: 1.Intelligent design, testing process is controllable ①Equipped with electronic lock, which can’t be opened during the testing process. ②All data about testing items, testing temperatures, testing time and furnace status can be recorded and uploaded to PC and displayed real time. The abnormal situation can be recorded during testing process. ③Up to 6 muffle furnaces can be controlled by one PC. 2.Multi testing mode available, slow ash, quick ash 1, quick ash 2, volatile matter, adhesion, Roga and Universal Test; Universal 1 test can set 6 temperature rise section, constant temperature point and the testing time. Universal 2 test can set sample introducing temperature, recover temperature, temperature recover time, temperature recover power and other parameters. 3.Superior heating element and insulating material. The housing temperature is close to room temperature. Homeothermy and homogeneity is superior to the international standard. 4.The instrument has alarm and power-off protection function against thermocouple counter-connection, thermocouple disconnection, and over-temperature & heating power open circuit. 5.Humanization Design, Easy Operation
