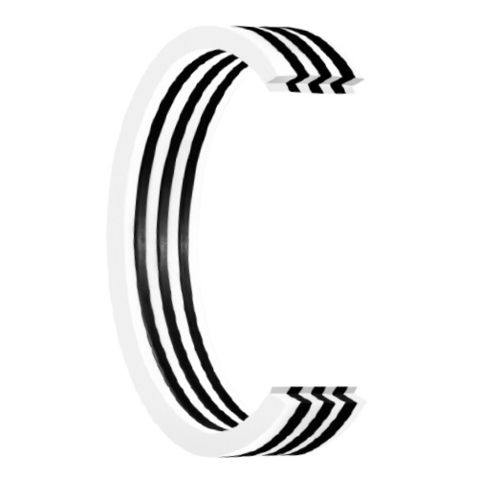

O-ring seal DMD seriesVNBRPTFE
Add to favorites
Compare this product
Characteristics
- Type
- O-ring
- Configuration
- V
- Material
- NBR, PTFE
- Application
- piston, for hydraulic fluids, rod
- Temperature limit
Max.: 120 °C
(248 °F)Min.: -30 °C
(-22 °F)- Pressure limit
400 bar
(5,801.5 psi)- Diameter
Max.: 1,500 mm
(59.055 in)Min.: 10 mm
(0.394 in)- Outer diameter
30 mm
(1.181 in)- Shore A hardness
40 unit
- Speed
0.5 m/s
(1.6 ft/s)
Description
Hunger V-packings are an extension to the DFE product
range for sealing piston rods and pistons. Due to
their profile, V-packings can be used for both outside
and inside sealing.
The use of plastics with good stability of shape has improved
the characteristics of conventional V-packings.
Standard versions contain pressure and support rings
of POM or PA and V-packings of fibre reinforced NBR.
The DMD1/DMD2 series has additional NBR V-packings.
The total width is determined by the number of V-packings
used (up to five). Non-adjustable installation
grooves can be compensated by distance rings, if necessary.
