3-axis milling machine / vertical
4VS Huracan Maquinarias S.L.

Add to MyDirectIndustry favorites

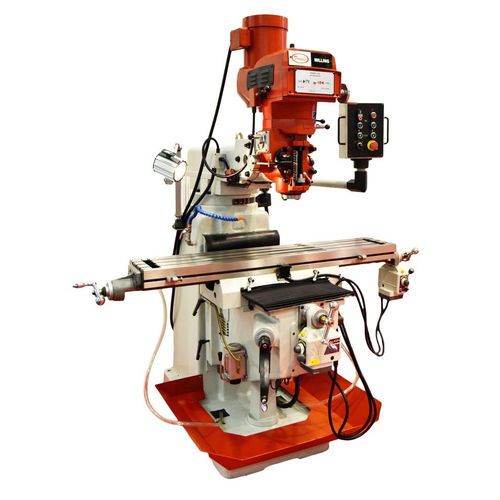

3-axis milling machine / vertical 3-axis milling machine / vertical - 4VS
{{requestButtons}}

Characteristics

  • Number of axes:

    3-axis

  • Spindle orientation:

    vertical

  • X travel:

    920 mm

  • Y travel:

    400 mm

  • Z travel:

    420 mm

  • Power:

    5 ch (5 hp)

Description

Worktable
Surface 1370 x 245 mm.
Maximum load over table 340 Kgs.
Travels & distances
Longitudinal travel (X) 920 mm.
Transversal travel (Y) 400 mm.
Vertical travel (Z) 420 mm.
Headstock
Spindle bore taper: ISO 40
Speed range: 60 - 3800
Spindle bore diameter (with hidraulic unit) 100 mm.
Power
Main motor 5 HP
Weight & dimensions
Area occupied 1700 x 1900 x 2300 mm.
Weight 1500 Kgs.
