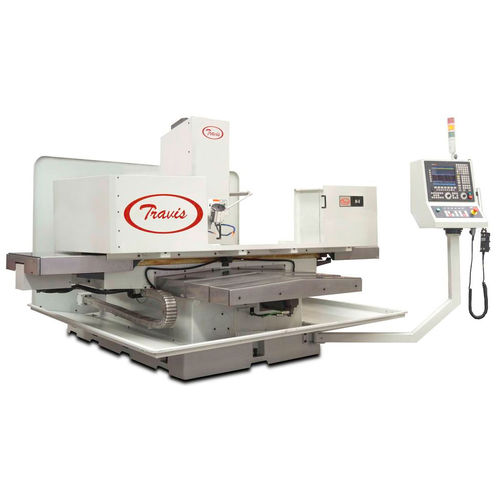

3-axis CNC milling machine M-8
vertical

3-axis CNC milling machine
3-axis CNC milling machine
3-axis CNC milling machine
3-axis CNC milling machine
3-axis CNC milling machine
3-axis CNC milling machine
3-axis CNC milling machine
3-axis CNC milling machine
3-axis CNC milling machine
3-axis CNC milling machine
Add to favorites
Compare this product


Characteristics

Number of axes
3-axis
Spindle orientation
vertical
X travel

2,000 mm
(79 in)

Y travel

850 mm
(33 in)

Z travel

710 mm
(28 in)

Rotational speed

Min.: 1 rpm
(6 rad.min-1)

Max.: 6,000 rpm
(37,699 rad.min-1)

Power

20 ch
(20 hp)

Description

CNC milling machine with numerical control Fagor model 8055 Plus with rigid threading, hardened and ground guides with Turcite-B coating, pneumatic tool lashing, centralized and automatic lubrication, complete refrigeration system, table with doors and safety micro, tray Taladrina collection, portable electronic handwheel with axis selector and emergency mushroom, lighting lamp, output for RS-232 communication system, ethernet, bases and leveling screws, game service tools and complies with CE regulations. Immediate delivery throughout the territory, with own guarantee and possibility of 4th and 5th axis. For any doubt or need, do not hesitate to contact us via email or phone and we will be happy to assist you.

Catalogs

No catalogs are available for this product.

See all of Huracan Maquinarias S.L.‘s catalogs
*Prices are pre-tax. They exclude delivery charges and customs duties and do not include additional charges for installation or activation options. Prices are indicative only and may vary by country, with changes to the cost of raw materials and exchange rates.
