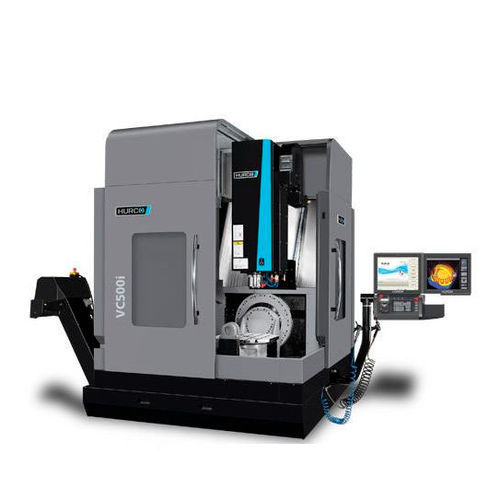

5-axis CNC machining center VC 500 iverticalrotating tableSK40
Add to favorites
Compare this product
Characteristics
- Number of axes
- 5-axis
- Spindle orientation
- vertical
- Structure
- rotating table
- Spindle mount
- SK40
- Number of tool stations
- 40 tools, 30 tools
- X travel
520 mm
(20 in)- Y travel
450 mm
(18 in)- Z travel
400 mm
(16 in)- Rotational speed
12,000 rpm
(75,398 rad.min-1)- Power
13 kW
(17.68 hp)- Work feed X-axis
28,000 mm/min
(18 in/s)- Work feed Y-axis
28,000 mm/min
(18 in/s)- Work feed Z-axis
28,000 mm/s
- Table load capacity
250 kg
(551 lb)- Tool weight (max)
7 kg
(15.4 lb)- Weight
8,400 kg
(18,518.83 lb)- Overall length
4,592 mm
(180.8 in)- Overall width
3,604 mm
(141.9 in)- Overall height
2,955 mm
(116.3 in)
Description
Trunnion table 5-axis makes 5-sided machining easy
TABLE
Spindle nose – table (mm) - 150 - 550
Faceplate- / Partdiameter max. (mm) - 500 / 625
T-Slots (DIN 650) - 5 x 14 x 100
TRAVELS
B-Axis (°) - +110 / -110
C-Axis (°) - 360
SPINDLE
Spindle Torque max. (Nm) - 82
FEEDRATES
Rapid traverse B-/ C-Axis (rpm) - 25 / 25
AUTOMATIC TOOL CHANGER
Tool diameter max. (mm) - 80 / 75
Tool length max. (mm) - 250
FURTHER DETAILS
Content coolant tank (l) - 320
Scraper type chip conveyor - Standard
