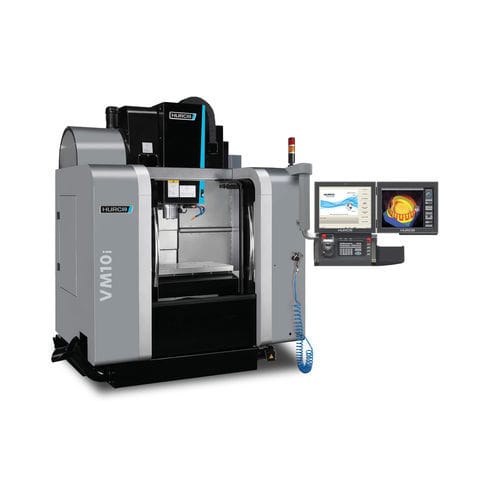

3-axis CNC machining center VM 10 i PlusverticalSK4024 tools
Add to favorites
Compare this product
Characteristics
- Number of axes
- 3-axis
- Spindle orientation
- vertical
- Spindle mount
- SK40
- Number of tool stations
- 24 tools
- X travel
660 mm
(26 in)- Y travel
406 mm
(16 in)- Z travel
508 mm
(20 in)- Rotational speed
12,000 rpm
(75,398 rad.min-1)- Power
11 kW
(14.96 hp)- Work feed X-axis
28,000 mm/min
(18 in/s)- Work feed Y-axis
28,000 mm/min
(18 in/s)- Work feed Z-axis
28,000 mm/min
(18 in/s)- Table load capacity
1,500 kg
(3,307 lb)- Tool weight (max)
7 kg
(15.4 lb)- Weight
2,850 kg
(6,283.17 lb)- Overall length
32,645 mm
(1,285.2 in)- Overall width
3,384 mm
(133.2 in)- Overall height
2,564 mm
(100.9 in)
Description
The plus in display and technical features optimizes ease of use and efficiency
TABLE
Spindle nose – table (mm) - 102 - 610
Table working surface W x D (mm) - 762 x 406
T-Slots (DIN 650) - 3 x 18 H8 x 100
SPINDLE
Spindle Torque (30min Rating) (Nm) - 61plus
AUTOMATIC TOOL CHANGER
Tool diameter max. (mm) - 80
Tool length max. (mm) - 250
Automatic Tool Changer
Tool diameter max. (mm)-80
Tool length max. (mm)-250
FURTHER DETAILS
Content coolant tank (l) - 108
Chip auger - Standard
