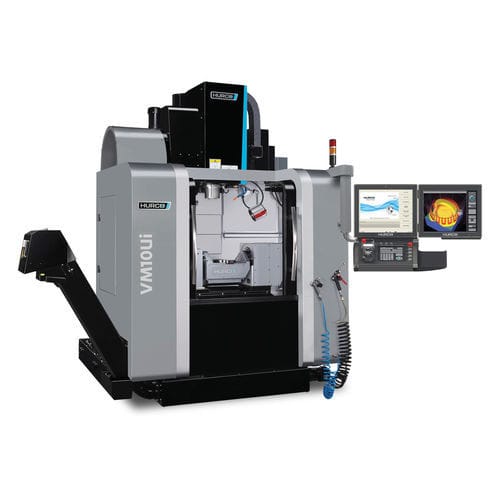

5-axis CNC machining center VM 10 Ui PlusverticalSK4024 tools
Add to favorites
Compare this product
Characteristics
- Number of axes
- 5-axis
- Spindle orientation
- vertical
- Spindle mount
- SK40
- Number of tool stations
- 24 tools
- Applications
- for small parts production
- Other characteristics
- high-power
- X travel
533 mm
(21 in)- Y travel
406 mm
(16 in)- Z travel
483 mm
(19 in)- Rotational speed
12,000 rpm
(75,398 rad.min-1)- Power
11 kW
(14.96 hp)- Work feed X-axis
28,000 mm/min
(18 in/s)- Work feed Y-axis
28,000 mm/min
(18 in/s)- Work feed Z-axis
28,000 mm/min
(18 in/s)- Table load capacity
150 kg
(331 lb)- Tool weight (max)
7 kg
(15.4 lb)- Weight
2,850 kg
(6,283.17 lb)- Overall length
3,246 mm
(127.8 in)- Overall width
3,379 mm
(133 in)- Overall height
2,714 mm
(106.9 in)
Description
Power, speed and unbeatable value - the ideal machine for small-sized 5-axis-parts
TABLE
Spindle nose – table (mm) - 36 - 519
Faceplate- / Partdiameter max. (mm) - 198 / 320
T-Slots (DIN 650) - 6 x 10
Tableload max. / Rotaryload (uniform distribution) (kg) - 150
TRAVELS
A-Axis (°) - +30 / -110
C-Axis (°) - 360
SPINDLE
Spindle Torque max. (Nm) - 61
FEEDRATES
Rapid traverse A-/ C-Axis (rpm) - 25 / 25
AUTOMATIC TOOL CHANGER
Tool diameter max. (mm) - 80
Tool length max. (mm) - 250
FURTHER DETAILS
Content coolant tank (l) - 108
Chip auger - Standard
