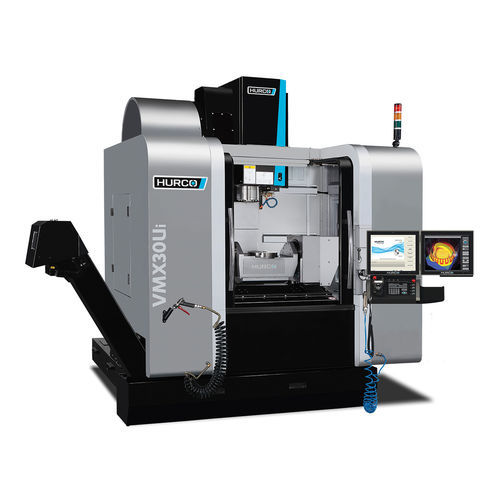

5-axis CNC machining center VMX 30 Ui
verticalSK4040 tools

5-axis CNC machining center
5-axis CNC machining center
5-axis CNC machining center
5-axis CNC machining center
Add to favorites
Compare this product


Characteristics

Number of axes
5-axis
Spindle orientation
vertical
Spindle mount
SK40
Number of tool stations
40 tools
Other characteristics
high-power
X travel

760 mm
(30 in)

Y travel

510 mm
(20 in)

Z travel

520 mm
(20 in)

Rotational speed

12,000 rpm
(75,398 rad.min-1)

Power

13.4 kW
(18.22 hp)

Work feed X-axis

38,000 mm/min
(25 in/s)

Work feed Y-axis

38,000 mm/min
(25 in/s)

Work feed Z-axis

32,000 mm/min
(21 in/s)

Table load capacity

200 kg
(441 lb)

Tool weight (max)

7 kg
(15.4 lb)

Weight

5,500 kg
(12,125.42 lb)

Overall length

3,940 mm
(155.1 in)

Overall width

4,041 mm
(159.1 in)

Overall height

2,864 mm
(112.8 in)

Description

Power, speed and unbeatable value - the ideal machine for medium-sized 5-axis parts TABLE Spindle nose – table (mm) - 90 - 610 Faceplate- / Partdiameter max. (mm) - 250 / 435 T-Slots (DIN 650) - 6 x 12 TRAVELS A-Axis (°) - +30 / -110 C-Axis (°) - 360 SPINDLE Spindle Torque max. (Nm) - 215 FEEDRATES Rapid traverse A-/ C-Axis (rpm) - 25 / 25 AUTOMATIC TOOL CHANGER Tool diameter max. (mm) - 76 Tool length max. (mm) - 300 FURTHER DETAILS Content coolant tank (l) - 265 Scraper type chip conveyor - Standard
