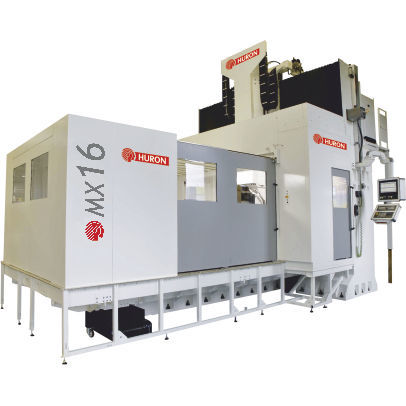

5-axis CNC milling machine MX 16 M
verticalHSK-100-A60 tools

5-axis CNC milling machine
5-axis CNC milling machine
Add to favorites
Compare this product


Characteristics

Number of axes
5-axis
Spindle orientation
vertical
Spindle mount
HSK-100-A
Number of tool stations
60 tools
Applications
for large workpieces, for profiles
Other characteristics
high-precision, milling, high-productivity, high-power
X travel

2,300 mm
(91 in)

Y travel

2,300 mm
(91 in)

Z travel

1,250 mm
(49 in)

Rotational speed

10,000 rpm
(62,832 rad.min-1)

Power

43 kW
(58.46 hp)

Work feed X-axis

40,000 mm/min
(26 in/s)

Work feed Y-axis

40,000 mm/min
(26 in/s)

Work feed Z-axis

40,000 mm/min
(26 in/s)

Table load capacity

10,000 kg
(22,046 lb)

Tool weight (max)

10 kg
(22 lb)

Positioning accuracy

0.007 mm
(0 in)

Repeatability

0.004 mm
(0 in)

Overall width

8,420 mm
(331.5 in)

Overall height

6,650 mm
(261.8 in)

Description

The MX multifunctions machining centre is a high flexibility machine enabling machining operations in 5 axes and on 5 sides, in one setup part clamping, from roughing to finishing. Key Features Milling (M) Hard material machining in a minimal time Complete automation of the machine Head and spindle Head equipped with integrated torque motor Head on a 45° plane allowing tilting from -45° to 180° Powerful spindle with high torque allowing high metal removal rate Monitoring of the machining’s vibrations to secure all the elements of the machine, the tool as well as the workpiece
