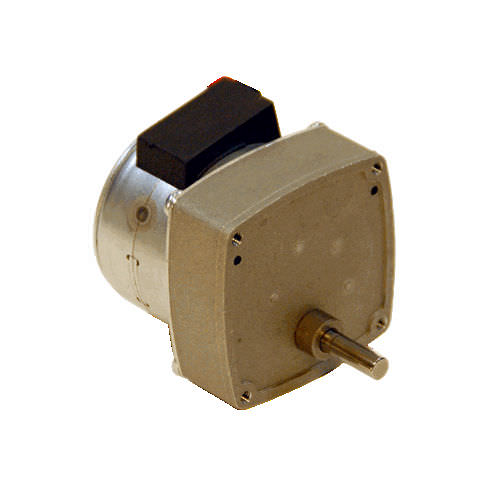

Stepper gear-motor LSG55 seriespermanent magnetplanetaryparallel-shaft
Add to favorites
Compare this product
Characteristics
- Motor type
- stepper, permanent magnet
- Type
- planetary
- Shaft orientation
- parallel-shaft
- Power
- 0 W...10 W
- Voltage
- 6 V, 24 V, 12 V
- Torque
- 1 - 5 Nm, 0.5 - 1 Nm, 0.2 - 0.5 Nm
- Product applications
- industrial
- Other characteristics
- compact
Description
Permanent Magnet DC Stepper LSG55 Geared Specifications:
Frame Size: 55mm
Step Angle: 7.5°
Position Accuracy: +/- 5% max.
Number of Phases: 4 phase bifilar
Insulation Class: Class A (105°C)
Lead Wire: 6 leads 24AWG (approx. 9 inches [228.6 mm])
Shaft Bearings: Sleeve/Ball (see Drawings Below)
Operation Ambient Temp: -10°C to +40°C (approx.)
Temperature Rise: 60°C max
Note: Typical data subject to change without notification.
