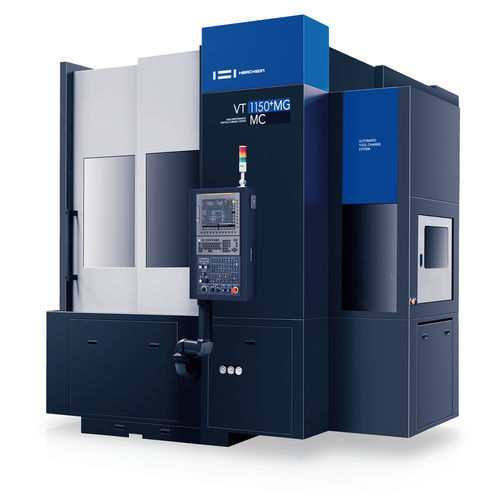

CNC turning center VT seriesvertical2-axisheavy-duty
Add to favorites
Compare this product
Characteristics
- Control type
- CNC
- Spindle orientation
- vertical
- Number of axes
- 2-axis
- Applications
- heavy-duty, for large workpieces
- Other characteristics
- with turret, spindle, high-precision, high-productivity, high-rigidity
- Diameter
1,350 mm
(53.15 in)- Spindle speed
500 rpm, 630 rpm, 800 rpm
(3,141.593 rad.min-1, 3,958.407 rad.min-1, 5,026.548 rad.min-1)- Axe X
610 mm
(24 in)- Axe Z
950 mm
(37 in)- Rapids on X
24,000 mm/min
(16 in/s)- Rapids on Z
20,000 mm/min
(13 in/s)- Nominal power
5.5 kW, 7.5 kW, 11 kW, 45 kW, 55 kW
(7.5 hp, 10.2 hp, 15 hp, 61.2 hp, 74.8 hp)- Coolant capacity
266 l
(70 gal)- Overall lenght
2,811 mm, 3,531 mm
(111 in, 139 in)- Overall width
4,110 mm
(162 in)- Overall height
3,610 mm
(142 in)- Weight
24,500 kg, 24,600 kg, 25,000 kg, 25,100 kg
(54,013 lb, 54,234 lb, 55,116 lb, 55,336 lb)
Description
VT-1150+ provides a rigid and stable heavy duty cutting based on a highly rigid box-way feed structure designed with an air-floating system and bed structure while maintains high precision even during long-term processing by minimizing thermal displacement.
Hwacheon software installed on the machine improves productivity and precision, provides better machining quality compared to existing machines.
VIDEO
Catalogs
Complete catalog
124 Pages
