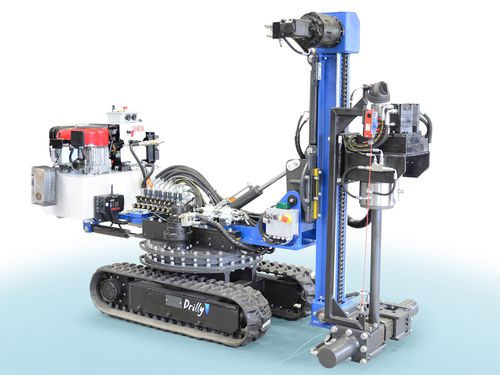

Horizontal drilling rig Drilly

pilinggeothermalcrawler

Designed and manufactured for a difficult access into jobsite and easy to operate in narrow location. Especially dedicate for the micro-medium piles and for geothermal drilling operations using the VIBRASOND technique. DRILLY handle inclined bores holes up to the horizontal line and, furthermore can allowed a fully 360° mast rotation movement. DRILLY need a connection to an external hydraulic power-pack. The assembly constitutes an extremely high performance perforation unit. Model Width crawler Closed 800 mm Opened 1200 mm Height with the machine in a closed position 1450 mm Horizontal manual thrust block (rotating device) A 360° up to Mast manual thrust block (rotating device) Up to 90° dx R + 90° sx L 300 - 600 kgm Effective stroke rotary drilling head 1250 - 1750 mm
