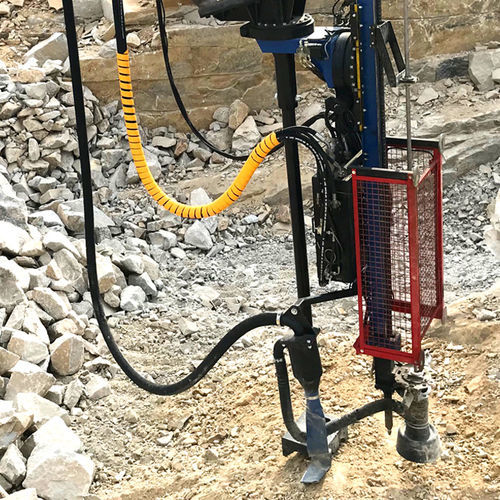

Core drilling drilling rig SL 150

continuous flight auger (CFA)for tie-back anchoringexploration

The drilling slide is built up privileging strength and use simplicity and it can be mounted on every type of excavator from 1500 to 5000 kg. The slide is supplied complete with a push-button panel which allows to control the rotation direction of the head and the ascent/descent of the drilling head. An hydraulic reduction gear placed on the top of the slide allows the ascent and the descent of the drilling head. It is possible to have a 1500/3000 kg lifting power. It is possible to effect drillings with the following tecniques: drilling with flight augers with bits for alluvial soils and with bits for stony/rocky soils with hexagonal coupling or with threaded coupling; drillings with milled tooth bits and 3 way drag bits; drillings with down-the-hole hammer and corings. On the slides it is also possible to assemble various equipments: Winch Vice with unscrewed Thrust bearing for slide rotation Feet for horizontal drillings. SL150 technical features: useable stroke 1500-3000 mm TR22-TR150 drilling head hydraulic system pressure max 200 bar hydraulic system max flow rate 80 Lpm It is possible to effect drillings with the following tecniques: • drilling with flight augers with bits for alluvial soils and with bits for stony/rocky soils with hexagonal coupling or with threaded coupling • drillings with milled tooth bits and 3 way drag bits • drillings with down-the-hole hammer and corings On the slides it is also possible to assemble various equipments: • winch • vice with unscrewer • thrust bearing for slide rotatio
