Screw pump / centrifugal / submersible / handling

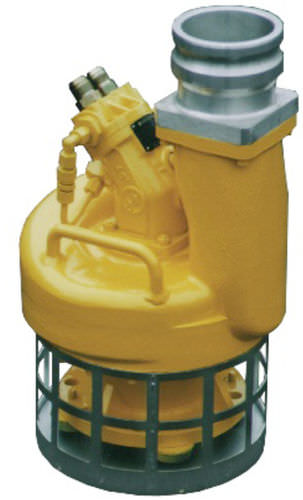

S4SCR Hydra-Tech Pumps

Characteristics

  • Type:

    screw, centrifugal

  • Priming:

    submersible

  • Functions:

    handling

  • Operation:

    hydraulic

  • Flow rate:

    Min.: 0 us gal/min (0 l/min)

    Max.: 900 us gal/min (3406.87 l/min)

  • Operating pressure:

    Min.: 0 psi

    Max.: 4500 psi

  • Head:

    Min.: 0 ft (0 m)

    Max.: 165 ft (50.29 m)

Description

S4SCR is ideal for applications such as pumping high viscosity liquids, including latex, molasses and crude oils, with the use of a positive displacement screw. When it comes to pumping lighter materials, the impeller turns into a centrifugal type and provides high capacity. Next, the 4" solids handling and the 2" maximum flow, along with the maximum head of 165' are other important advantages.

Other features are the hydraulic input of 12GPM and the maximum hydraulic pressure supported of 4,000psi (272bar). The item weighs 25kg (54lbs) and is suitable for use even in confined spaces. The ceramic-coated case makes the product more resistant to abrasion, while the item can also be used as a booster pump.
