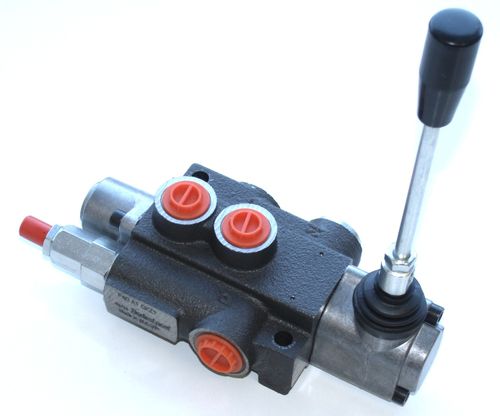

Spool hydraulic directional control valve E01100

lever-operatedcompactmonobloc

G3/8(BSP) 40lpm 1 spool monoblock directional control valve. Double acting, spring return to neutral. P-T A & B blocked The P40 low profile monoblock spool valve range has been specifically designed for use in mobile hydraulic applications. It is compact but has a flow capacity of 40 lpm at 250 bar. With a choice of series or parallel circuitry, the P40 valve is an economic alternative to fully featured modular valves. Supplied with an adjustable relief valve and levers as standard, the P40 is available with a range of spool options and centring mechanisms as well as pneumatic control to suit a variety of mobile and industrial applications. Available with up to 7 spools with a common load check valve or 3 and 4 spools with individual load check valves to comply with machine safety requirements.
