Scissor lift table MX series
electricstationarylow-profile

scissor lift table
scissor lift table
scissor lift table
scissor lift table
scissor lift table
scissor lift table
scissor lift table
scissor lift table
Add to favorites
Compare this product


Characteristics

Technology
scissor
Operation
electric
Type
stationary
Other characteristics
low-profile
Capacity

500 kg, 1,000 kg, 2,000 kg
(1,102.3 lb, 2,204.6 lb, 4,409.2 lb)

Lowered height

80 mm, 100 mm
(3 in, 4 in)

Lifting height

800 mm
(31 in)

Description

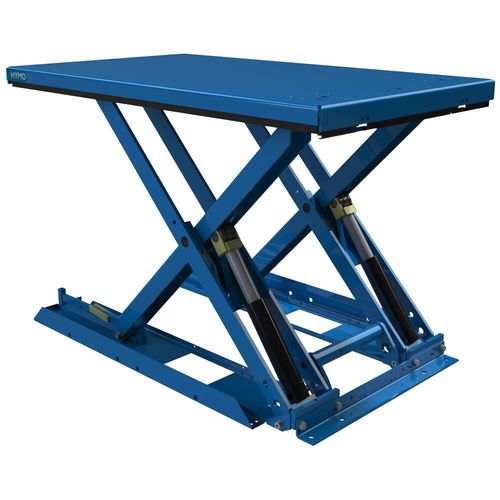

Hymo MX has a lifting capacity up to 2000 kg and a stroke of 800 mm. Hymo MX has a rectangular platform and can be loaded with the aid of a ramp (option). the MX-table can be placed directly on the floor or in a shallow pit. Hymo MXT has a lifting capacity up to 3000kg and a stroke of 800mm. Hymo MXT has an extra long lifting platform which is faciliated up by two horizontally placed scissor packages. Hymo MXT is designed for the handling of long goods and materials. MXT has a low closed height. They are also ideal as independent workstations handling Euro- and CHEP as wells a UK pallets.
