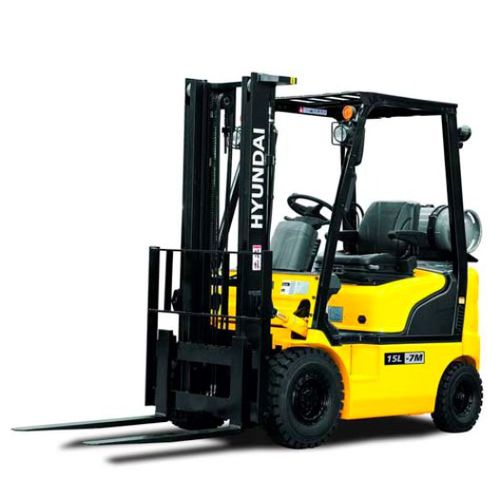

LPG forklift truck 15L-7M
ride-onindoorindustrial

LPG forklift truck
LPG forklift truck
LPG forklift truck
Add to favorites
Compare this product


Characteristics

Motor type
LPG
Operator
ride-on
Applications
handling, industrial, indoor
Other characteristics
4-wheel, counterbalanced, compact
Carrying capacity

1,500 kg, 1,750 kg, 2,000 kg
(3,306.9 lb, 3,858.1 lb, 4,409.2 lb)

Lifting height

Min.: 2,500 mm
(98.43 in)

Max.: 7,000 mm
(275.59 in)

Overall width

1,070 mm
(42.1 in)

Load center distance

500 mm
(19.7 in)

Height to top of overhead guard

2,110 mm
(83.1 in)

Seat height

1,050 mm, 1,128 mm, 1,129 mm
(41.3 in, 44.4 in, 44.4 in)

Tow couplig height

270 mm, 271 mm
(10.6 in, 10.7 in)

Length to fork face

2,233 mm, 2,263 mm, 2,308 mm
(87.9 in, 89.1 in, 90.9 in)

Turning circle radius

2,000 mm, 2,026 mm, 2,061 mm
(78.7 in, 79.8 in, 81.1 in)

Travel speed

20.1 km/h
(12.5 mph)

Lifting speed

650 mm/s, 680 mm/s

Lowering speed

450 mm/s, 500 mm/s

Rated drawbar pull

17,028 N, 17,131 N, 17,269 N

Gradeability

33 %, 35.4 %, 39.7 %

Rated output

37 kW
(50.3 hp)

Description

These LPG forklift trucks give strength and reliability with one of the smallest carbon footprints in the industry. Designed to meet the application requirement of high productivity indoor material handling operations the 15L-7M - 18L-7M - 20L-7M offer users a combination of clean power, excellent maneuverability and superior performance which is unmatched in the market. The Hyundai range of 1.5 - 2.0 tonne LPG powered forklifts have been designed to offer powerful performance on a compact chassis; making them the perfect choice for use in space limited applications. These trucks feature powerful LPG engines which provide high power at low engine speed, making them suitable for loading and unloading on ramps, where fast lift speeds are required, or repetitive use is needed. Improving productivity and lowering operation costs, these trucks increase operator comfort, feature advanced servicing features and increased performance efficiencies. Fast and stable performance Being able to quickly raise and lower the mast, as well tilting forward and backward, the truck provides you the best operational conditions during loading/unloading operations. When the truck is full loaded, mast lowering speed is carefully controlled to ensure safety by the own control valve. Powerful Engine L4KB Engine Market approved quality of L4KB engine ensures incomparable performance, durability and additional value to the machine. Powerful and efficient engine provides excellent fuel consumption and exellent torque improved operator’s comfort. (EPA/CARB Tier-IV Certified) A hydraulic steering system always guarantees smooth and flexible steering, preventing overrun and steering wheel Kick-back
