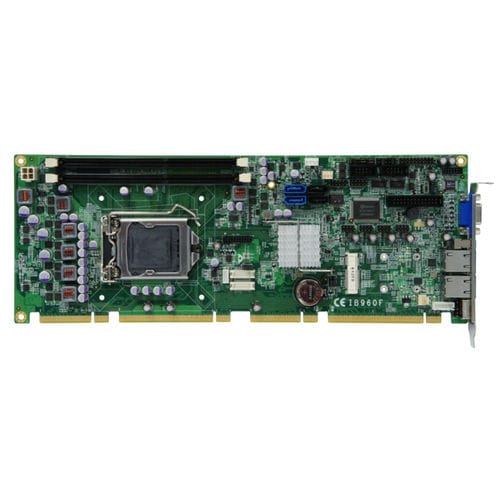

PICMG 1.3 CPU board IB960
Intel® Celeron®Intel® Core™ i seriesembedded

PICMG 1.3 CPU board
PICMG 1.3 CPU board
Add to favorites
Compare this product


Characteristics

Bus standard
PICMG 1.3
Processor
Intel® Celeron®, Intel® Core™ i series
Other characteristics
embedded

Description

The IB960 is a PICMG 1.3 full-size CPU card supporting Intel's 2nd generation Core™ i7, Core™ i5 and Core™ i3 processors on the card’s LGA 1155 socket. All of these processors come integrated with high-performance graphics processing unit that works with the IB960's video outputs including VGA CRT, DVI-D and 24-bit dual channel LVDS interface. Incorporating the Intel® Q67 chipset, IB960 supports CPU clock speeds up to 3.4GHz, 8MB cache, and HyperThreading. It provides new levels of performance and capabilities designed for increasingly demanding applications in the medical, industrial automation, communications and DVR industry. IB960 comes with two DDR3 DIMM sockets on board allowing up to 8GB of system memory. High speed I/O connectivity is provided by 9 USB 2.0, 4 SATA II ports, 2 SATA III ports, 2 serial ports, a printer port and dual Gigabit Ethernet ports. Sized 338mm x 122mm, this platform also has a Mini PCI-E expansion socket.
