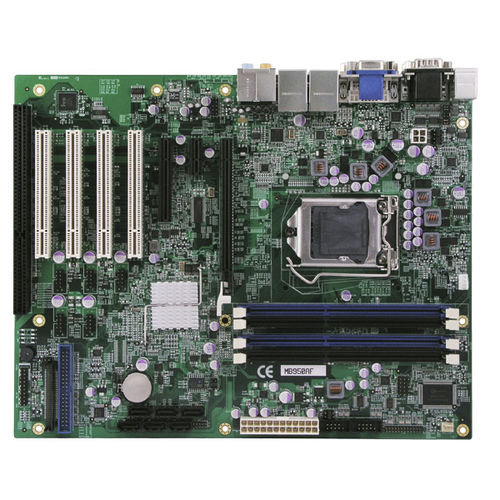

ATX motherboard MB950

Intel® Core™ i seriesIntel®DDR3 SDRAM

The MB950 ATX motherboard offers the Socket H (LGA1156) supporting the Intel® Core™ i7, Core™ i5, Core™ i3 processors or the Intel® Pentium® processor G9650, all developed on Intel's microarchitecture and using Intel’s 32nm and 45nm process technologies. Designed as an enterprise-performance ATX motherboard, the MB950 offers at least 3-year availability and is ideal for the latest generation of POS, kiosk, automation and multimedia applications such as gaming. Based on the Intel® Q57 chipset, the MB950 supports the processor-integrated graphics to provide two display streams in combination of the onboard VGA CRT and DVI-D video interfaces. Up to 16GB of maximum memory can be configured in four DDR3 socket at 1066/1333MHz. In addition to the impressive computing performance, the board is equipped with high-end connectivity comprised of dual Gigabit LAN controllers, six SATA-II ports, one IDE, fourteen USB 2.0 ports, four COM ports and high-definition audio. Should greater performance or expansion be required, add-on cards can be connected to the onboard PCI-E(x16), PCI-E(x8) [(x4) Link], PCI-E(x1), four PCI, and ISA slot.
